How do you mount a handheld vacuum? The short answer is that you either screw a bracket into the wall or stick it on with strong adhesive strips. Homeowners usually drill.
Renters and tile walls usually go with adhesive. The right choice depends on your wall type, the vacuum's weight, and whether you're allowed to make holes.
A useful baseline from 2026 market specs: most handheld vacuums weigh between 1.5 and 5 pounds. A pair of drywall anchors holds 50 to 150 pounds when installed correctly. So the mount has plenty of margin.
The weak link is usually the installer, not the hardware. Let's fix that.
Quick Answer
Mount a handheld vacuum by attaching its bracket to a wall. Use screws and drywall anchors for drywall. Use adhesive strips for tile or smooth surfaces.
Always check for wires before drilling. Level the bracket, then snap the vacuum into place.
Start With the Wall: What You're Mounting Into
Before you pick a mount, figure out what's behind the wall. Knock on it. A hollow sound means drywall.
A dense, solid sound means plaster, concrete, or tile. A stud finder shows where the vertical framing sits, typically 16 inches apart in newer homes.
If you hit a stud, screw straight into it. No anchor needed. If you have hollow drywall, use a drywall anchor.
If you have tile or brick, use a masonry bit or adhesive. Plaster is the trickiest surface. It cracks easily, so you'll want a molly bolt or toggle bolt rather than a standard screw.
Use a stud finder with live-wire detection or a separate wire scanner. Contact with hidden wiring is a leading cause of electrical incidents, per OSHA's electrical safety guidance. The same risk applies at home, especially near outlets and light switches.
| Wall Surface | Fastener | Mounting Method |
|---|---|---|
| Wood stud | Screw directly | Drill a pilot hole, screw into stud |
| Hollow drywall | Drywall anchor | Tap anchor in, screw bracket |
| Plaster | Molly bolt / toggle bolt | Drill carefully, insert bolt |
| Tile / glass | Adhesive or masonry bit | Use a diamond bit or skip drilling |
| Metal stud | Self-tapping screw | Use a metal-stud anchor |
Location, Level, and Power: The Setup Details That Matter
Mount height matters more than you think. If the vacuum sits too low, you'll stoop every time. Too high, and you'll struggle to lift it off the cradle.
A comfortable center height is 40 to 48 inches from the floor. That places the dock right around your elbow or hip.
Leave at least 3 inches of clearance above the dock. Handheld vacuums slide up and off their cradles. The dust bin door often opens at the bottom.
If you mount too close to a shelf or cabinet, the bin won't open and the vacuum won't seat properly.
Most handheld vacuums charge through contacts on the dock. The dock connects to a low-voltage adapter, so it needs to be within about 6 feet of an outlet. If you can't reach, use a short indoor-rated extension cord and secure it neatly along the wall.
Avoid running the cord across a doorway.
The bracket must be level. A slight tilt looks sloppy and can misalign the charging pins. Hold a level on top of the bracket before marking any holes.
Mark lightly with a pencil, then drill.
The Drill-and-Screw Method: The Permanent Upgrade
This is the most secure option. It works with almost every docked handheld vacuum on the market. You'll spend about 20 minutes with the right tools.
The end result feels solid and won't budge when you pull the vacuum off.
Image source: Openverse / Ryan Colyer
| Tool | Why You Need It |
|---|---|
| Cordless drill | Makes pilot holes quickly |
| Drill bit set | Match the anchor size |
| Screwdriver | Tighten bracket screws |
| Stud finder | Locate the framing |
| Level | Keep the bracket straight |
| Pencil | Mark the hole positions |
Step-by-Step Installation
- Find your spot. Use the stud finder to locate a stud, or pick a hollow section of drywall where the bracket fits.
- Hold the bracket in place. Set the vacuum in the dock first so you know exactly where the screw holes fall.
- Check the level. Place a level on top of the bracket. Adjust until the bubble sits centered.
- Mark the screw holes. Use a sharp pencil. Make a small dot through each hole in the bracket.
- Drill pilot holes. For drywall anchors, drill a hole matching the anchor diameter. For studs, drill slightly smaller than your screw.
- Insert the anchors. Tap them flush with a hammer. Don't force them deeper than the surface.
- Screw the bracket on. Tighten each screw evenly. Stop when the head is snug. Over-tightening strips the anchor.
- Attach the dock. Snap the charging cradle onto the bracket. Some models use a locking tab, others slide on.
- Test the connection. Place the vacuum on the dock. Verify the charging light turns on. If it doesn't, loosen the screws slightly and adjust the bracket.
Anchors and Weight Limits

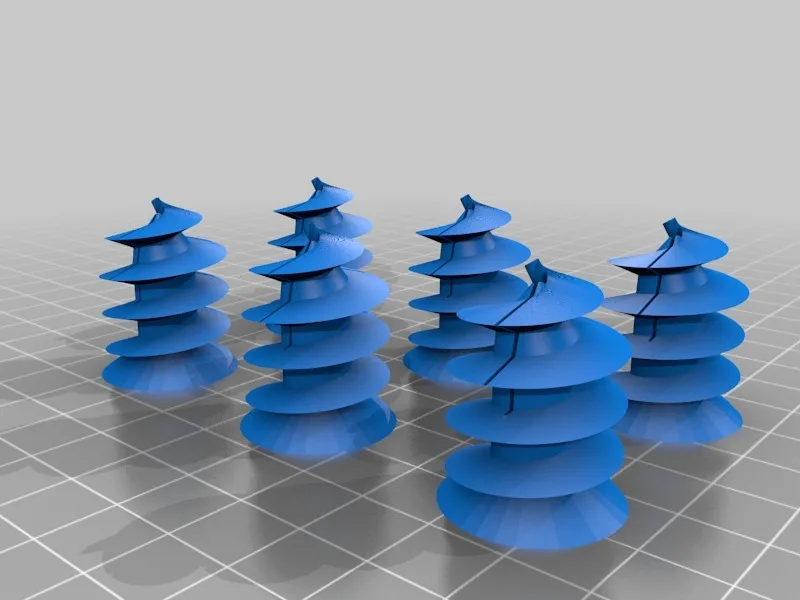

Drywall anchors are rated by weight. Light-duty plastic anchors hold 25 to 40 pounds. Metal toggle bolts can hold up to 75 pounds in drywall.
Since most handheld vacuums weigh under 5 pounds, even the smallest anchor has plenty of margin. The weak link is almost always a loose screw, not the anchor itself.
Turn off power at the breaker before drilling near outlets or switches. Even with a wire detector, you can't always see what's behind the wall. A few extra steps prevent a dangerous mistake.
No-Drill Options: Renters, Tile, and Rental-Friendly Fixes
Not everyone can drill holes. If you're renting or working with tile, adhesive strips and magnetic mounts solve the problem.
Image source: Openverse / Tim Nielsen
Adhesive strips work best on smooth, flat surfaces. That includes painted drywall, glass, tile, and finished wood. The key is wall preparation.
Wipe the surface with rubbing alcohol, let it dry completely, then press the strip firmly for 30 seconds.
Weight ratings matter more than the number of strips. Standard adhesive strips hold 4 to 16 pounds per pair. Most handheld vacuums weigh 1.5 to 5 pounds, so a single pair is usually enough.
For a heavy model with a long charging cable, use two pairs or add a magnetic backup.
Magnetic holders are another practical route. Attach a magnetic bar to the wall, then stick a metal plate to the vacuum. This works well when the vacuum has a flat metal side.
The downside is that magnetic mounts don't charge the vacuum, so you'll need to plug it in separately.
Pegboard hooks work well in garages and workshops. They require a pegboard panel or a wall-mounted pegboard system. The hook holds the vacuum by its handle or around the body.
You'll need a separate spot for charging.
Under-cabinet mounts suit small kitchens. Screw the bracket to the bottom of a cabinet, or use a strong adhesive strip. The vacuum hangs out of sight but stays within reach.
This works best with lightweight models, since cabinet bottoms are usually thin wood.
Give adhesive strips time to cure. Most manufacturers recommend waiting 1 hour before hanging anything. Some heavy-duty strips require 24 hours for a maximum bond.
Check the package instructions before you snap the vacuum in place.
| No-Drill Method | Weight Capacity | Best For |
|---|---|---|
| Adhesive strips | 4–16 lbs per pair | Tile, painted drywall, glass |
| Magnetic bar | 5–15 lbs | Metal vacuums or added plates |
| Pegboard hook | 10–25 lbs | Garages and workshops |
| Under-cabinet mount | 5–10 lbs | Kitchens and laundry rooms |
Wall Type vs. Mount Type: Quick Decision Guide
If your wall is drywall, check for a stud first. Screw in when you find one. If you only have hollow drywall, use anchors rated for at least 25 pounds.
For tile and glass, skip drilling altogether. Adhesive strips hold most handheld vacuums without surface damage. Plaster needs molly bolts or toggle bolts, since standard screws pull out over time.
Metal studs are common in newer apartments and require self-tapping screws or specialty anchors.
Here's the simplified version. Screw when you can. Anchor when you can't.
Stick when you shouldn't drill.
Common Mounting Mistakes That End Up on the Floor
Most mounting failures share the same root causes. Skipping the stud finder leads to drilling into hollow drywall. No anchor, no grip, and the bracket pulls loose within a week.
Rushing adhesive cure time is just as common. Those strips need 1 to 24 hours to bond, not the 30 seconds most people wait. Watch out for these too:
- Ignoring charging pin alignment
- Mounting where a door swing hits the vacuum
- Blocking the dust bin with a shelf above
- Using the wrong drill bit on tile
- Over-tightening screws and stripping the anchors
- Forgetting to check for pipes behind the wall
Every one of these is easy to avoid during setup. Each one is a pain to fix after the vacuum hits the floor.
Real-World Scenarios: Apartments, Garages, and RVs
Renters usually need a no-drill solution. Adhesive strips or a magnetic bar gets the job done. Clean the wall with rubbing alcohol first so the tape bonds properly and won't peel off paint.
Garages are the easiest case. Screw into a stud and keep the dock off the workbench. If the stud isn't where you need it, drywall anchors work fine.
RVs and boats need screw-mounted brackets. The constant vibration shakes loose adhesive strips on rough roads. Retighten the screws every few months, especially after long trips.
Safety and Maintenance: Wiring, Rust, and Charging Contacts
Scan the wall before drilling. A stud finder with live-wire detection catches hidden electrical lines, but don't rely on it alone. Turn off power at the breaker when working near outlets.
Once mounted, maintenance is simple. Wipe the charging contacts on the dock and vacuum every couple of weeks. Dust interferes with power flow and leaves the vacuum partially charged.
In a garage or trailer, check the metal brackets for rust.
A loose bracket screw is an easy fix. Retighten it with a screwdriver every few months while you're cleaning the contacts.
Frequently Asked Questions
How long does mounting take?
Plan for 15 to 20 minutes when drilling. The no-drill version takes about 5 minutes, plus 1 hour of adhesive cure time. Most of the time goes into marking holes, drilling pilots, and leveling the bracket.
Can I mount a handheld vacuum without the brand-specific dock?
Yes, but you lose the charging function. Use a magnetic bar, pegboard hook, or generic cradle instead. Just confirm the mount doesn't block the dust bin or the power switch.
What's the best height to mount a handheld vacuum?
The center of the dock should sit 40 to 48 inches from the floor. This aligns with a natural grabbing motion for most people. Adjust up or down based on your own height.
Will adhesive strips damage my paint or drywall?
No, not when you remove them correctly. Pull the strip straight down slowly, following the manufacturer's instructions. Modern strips release without peeling paint or leaving residue behind.
Final Verdict: Pick the Mount That Matches Your Wall and Life
Here's the whole decision in one flow. If you own the wall, drill. Screws and anchors give you a rock-solid hold that never loosens on its own.
If you rent or the wall is tile, use adhesive strips. They hold a 5-pound vacuum easily when installed on a clean, smooth surface.
| Your Situation | Recommended Mount | Why |
|---|---|---|
| Homeowner, drywall or stud | Drill and screw | Permanent and most secure |
| Homeowner, tile or brick | Adhesive or masonry bit | Avoid cracking the surface |
| Renter, any smooth wall | Adhesive strips | No wall damage on move-out |
| RV / boat owner | Screw into cabinet | Vibration loosens adhesive |
| Garage / workshop | Pegboard or screw mount | Easy access, high load capacity |
The charging dock adds one more condition. If you want the vacuum to charge while mounted, you need the brand-specific dock. That means screwing or sticking the included bracket in place.
Generic mounts hold the vacuum but don't power it.
Start with the question that matters most. Will you live in this space for more than a year? If yes, screw the bracket into the wall.
Use a stud finder first, drill pilot holes, and seat the anchors properly. The whole job takes 20 minutes.
If you're renting or unsure about the long term, go adhesive. Clean the wall with rubbing alcohol, press the strips for 30 seconds, and wait at least 1 hour before hanging the vacuum. Check the package for the exact cure time, since heavy-duty strips bond over 24 hours.
A handheld vacuum mount isn't a hard project. The tools are basic, the steps are short, and the payoff is real. Screw for permanence.
Stick for flexibility. Both work. Choose the one that fits your wall and your situation, and you're done.
